New Product aXMD2150

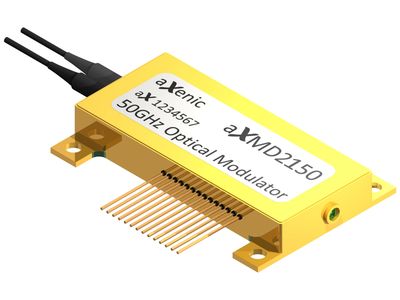

aXMD2150 Broadband Optical Modulator



The aXMD2150 is a compact, high-performance electro-optic modulator based on gallium arsenide (GaAs) guided-wave technology. It is ideal for broadband digital and analogue applications from DC to 60GHz where space and weight are at a premium. This linear Mach Zehnder device combines market leading performance in bandwidth and drive-power with a compact folded-optics configuration, which segregates RF and optical interfacing to opposing ends and helps preserve integrity of the RF feed.  The GaAs chip at the heart of the unit is fabricated using industry-standard high-volume foundry processes, and features (in common with other GaAs devices) a high degree of environmental stability, eliminating the need for temperature control.

Features



  • Low size weight and power
  • Compact folded optical configuration
  • Flat frequency response to 50 GHz
  • Linear electro-optic response
  • RF drive voltage (Vp) less than 5V (DC)
  • SMPM RF connector (opposite end to fibre I/O)
  • Output monitor photodiode
  • Environmentally stable and radiation tolerant
  • Negligible long-term bias-point drift
  • Temperature control not required

Applications



  • Broadband digital communications (BPSK)
  • RF over fibre
  • Phased-array antenna remoting
  • Aerospace and defense systems
  • Satellite communications
  • Free space optical links
  • High throughput satellites


New Product aXSD2050

aXSD2050 GaAs IQ Modulator



The aXSD2050 is a compact, high-performance electro-optic IQ modulator based on gallium arsenide (GaAs) guided-wave technology. It is ideal for applications where space and weight are at a premium: e.g. QPSK and QAM encoding up to 60Gbd, single-sideband modulation or RF mixing up to 60GHz. This linear Dual Parallel Mach Zehnder device combines market leading performance in bandwidth and drive-power with a compact folded-optics configuration, which segregates RF and optical interfacing to opposing ends and helps to maintain integrity of the RF feeds. The GaAs chip at the heart of the unit is fabricated using industry-standard high-volume foundry processes, and features (in common with other GaAs devices) a high degree of environmental stability, eliminating the need for temperature control.

Features

  • Low size weight and power
  • Compact folded optical configuration
  • Flat frequency response to 50 GHz
  • Linear electro-optic response
  • RF drive voltage (Vp) less than 5V (DC)
  • Dual SMPM RF connectors (opposite end to fibre I/O)
  • Output monitor photodiode (Parent)
  • Environmentally stable and radiation tolerant
  • Negligible long-term bias-point drift
  • Temperature control not required

Applications

  • Broadband digital communications
  • Aerospace and defense systems
  • Satellite communications
  • Free space optical links
  • Digital QPSK, and DQPSK transmission
  • Single Sideband (SSB) modulation
  • RF mixing and down-conversion
  • QAM and PAM4 modulation

aXMD2030

aXMD2030 - 40 GHz Mach Zehnder Modulator

The aXMD2030 is a low loss, high integrity Mach Zehnder Optical Modulator based on gallium arsenide designed for general-purpose applications over the frequency range DC-40GHz. The die is fabricated using well proven and exercised high volume gallium arsenide processes used in the telecommunications industry that offers market leading performance optimized for optical applications.

Application​s

  • Broadband digital communications
  • RF over fiber
  • Defense systems​

 Contact aXenic​ for further info

aXSD2125

aXSD2125 – 40 Gbit/sec IQ Modulator

The aXSD2125 is a​ low loss, high integrity IQ optical modulator (offering full control of the optical intensity and phase to reach any point in the IQ plane) based on gallium arsenide designed for general-purpose applications over the frequency range DC-20GHz.  The die is fabricated using well proven and exercised high volume gallium arsenide processes used in the telecommunications industry that offers market leading performance optimized for optical applications.

Applications

  • Broadband analogue and digital communications up to 40 GBits/s
  • QPSK and DQPSK transmission
  • Single side band modulation
  • Also suitable for 8-PSK and QAM transmission

 Contact aXenic​ for further info

Legacy Product aXPD1332

aXPD1332 – 100 Gbit/sec Dual Polarisation IQ Modulator

The aXPD1332 ​is a fully integrated Polarization Multiplexed IQ optical modulator, based on gallium arsenide and designed for dual polarization optical phase shift keying up to 32 Gbaud per channel (128 Gb/s data rate). It is the ideal solution also for polarization multiplexed 16-QAM. The die is fabricated using well proven and exercised high volume gallium arsenide processes used in the telecommunications industry that offers market leading performance optimized for optical applications.

Applic​ations

  • Broadband digital communications
  • Polarization multiplexed BPSK, QPSK and QAM transmission
  • 100G Transponder and Linecards
  • DWDM, Metro to LH
  • 200G 16QAM transmitter for dual carrier 400G​

Legacy Product aXPD2340

aXPD2340 – 400 Gbit/sec Dual Polaris​​ation IQ Modulator

The aXPD2340 is a fully integrated Polarization Multiplexed IQ optical modulator, based on gallium arsenide and designed for dual polarization optical phase shift keying up to 56 Gbaud per channel. It is the ideal solution also for polarization multiplexed 16-QAM. The die is fabricated using well proven and exercised high volume gallium arsenide processes used in the telecommunications industry that offers market leading performance optimized for optical applications.​

Application​​s

  • Broadband digital communications
  •  Polarization multiplexed BPSK, QPSK and QAM transmission
  • 400G Transponder and Linecards
  • DWDM, Metro to LH* 400G 16QAM single carrier transmission​
